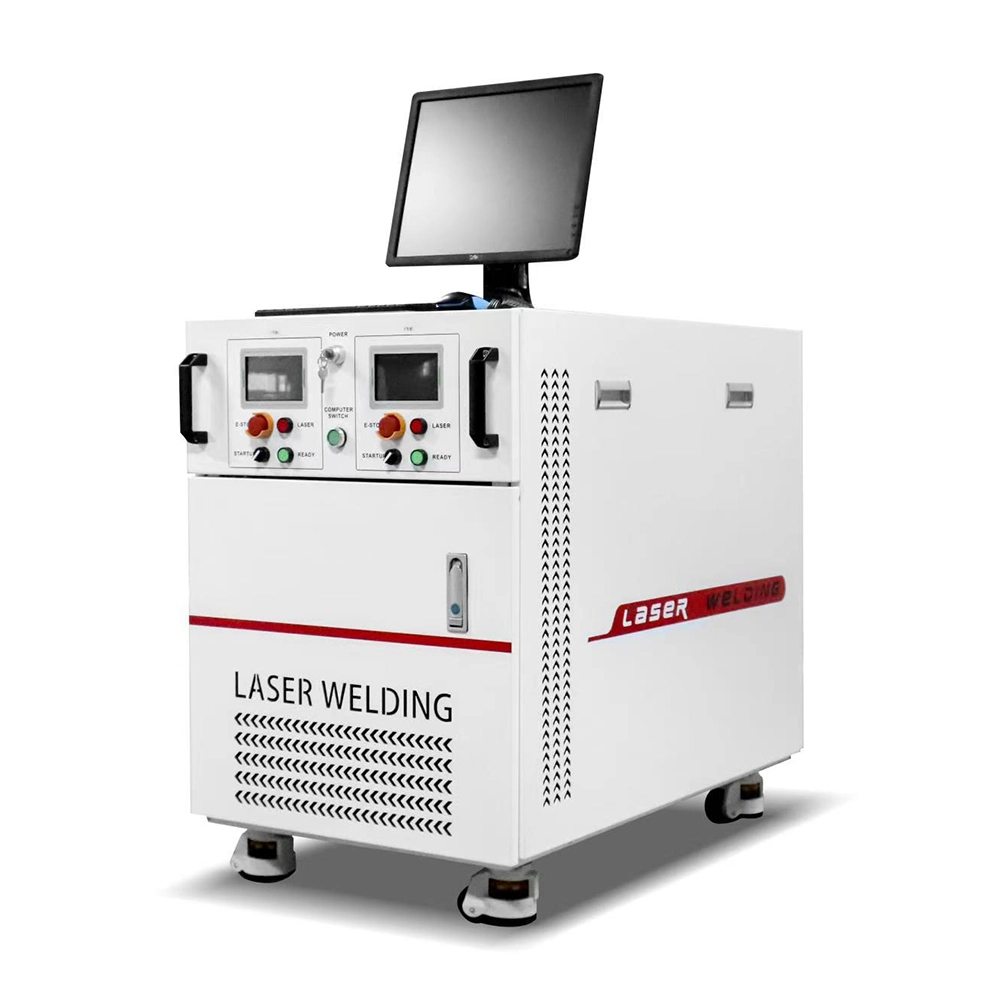

Industrial Pulse Laser Welding Machine Supplier - Sibrayze
Equipment Configuration List
| Accessory name | Model | Mumber | Manufacturer/origin | Remarks |
| Pulsed laser | Sib-100w-p2-qcw | 2 units | Sibrayze | Fiber core 100 |
| Galvanometer control card | Sib-gc-a | 2 sets | Sibrayze | Two control cards and one software set for switchable use |
| Computer | Industrial pc | 1 set | Yanhua | |
| Collimation | Qhbd30 f100mm | 2 sets | Sibrayze | |
| Monitor | 17-inch | 1 pcs | Units | |
| Manual z-axis | Column+light path | 2 set | Sibrayze | Wo 500mm high * 450m long |
| Galvanometer | D20 through-hole mirror | 2 set | Sibrayze | |
| Field lens | F220 | 2 set | Sibrayze | |
| Cabinet | 1 units | Sibrayze | ||
| Accessories and loose parts | 1 set | Sibrayze |
Sibrayze as a professionalpulse laser welding machine manufacturer & supplier, we specialize in R&D, production, and global supply of high-quality industrial pulse laser welders.
Precision: Capable of making very fine welds for applications in jewelry, electronics, Sheet metal and medical devices.
Minimal damage: Low heat input leads to a minimal heat-affected zone and low distortion.
Multi-functionality: Some systems can also perform cleaning (e.g., rust or paint removal) and cutting tasks.
After sales service
● The laser is covered by a two-year warranty, and the supplier is responsible for shipping replacement of damaged parts; The supplier provides on-site technical support for major issues.
● Fragile parts and consumables: Optical fibers, protective lenses, etc. are not covered by the warranty; If significant issues arise, they can be resolved through negotiation.
● We provide a lifetime free after-sales service hotline and welcome inquiries at any time.
Technical Specifications
| Model | Sib-200w-t2-p2-qcw |
| Laser wavelength | 1080NM |
| Output optical power | 100W*2 |
| Maximum pulse energy | 10J*2 |
| Maximum peak power | 1KW*2 |
| Pulse width | 0-50MS |
| Working mode | Pulse or continuous |
| Energy fluctuation | <1% |
| Fiber optic core | 100um |
| Number of fiber optic outputs | ≤4 |
| Spectral method | Precision energy spectroscopy or high-speed time spectroscopy/time spectroscopy |
| Aiming and positioning method | Laser diode red light indicator (ccd monitoring optional) |
| Cooling method | Air Cooling |
| Device power consumption | 2KW |
| Electricity requirements | AC220V, 50/60HZ |
| Overall dimensions | Length: 930 Width: 550 Height: 850mm |
